Understanding Pressure Drop in Valves: A Visual Guide

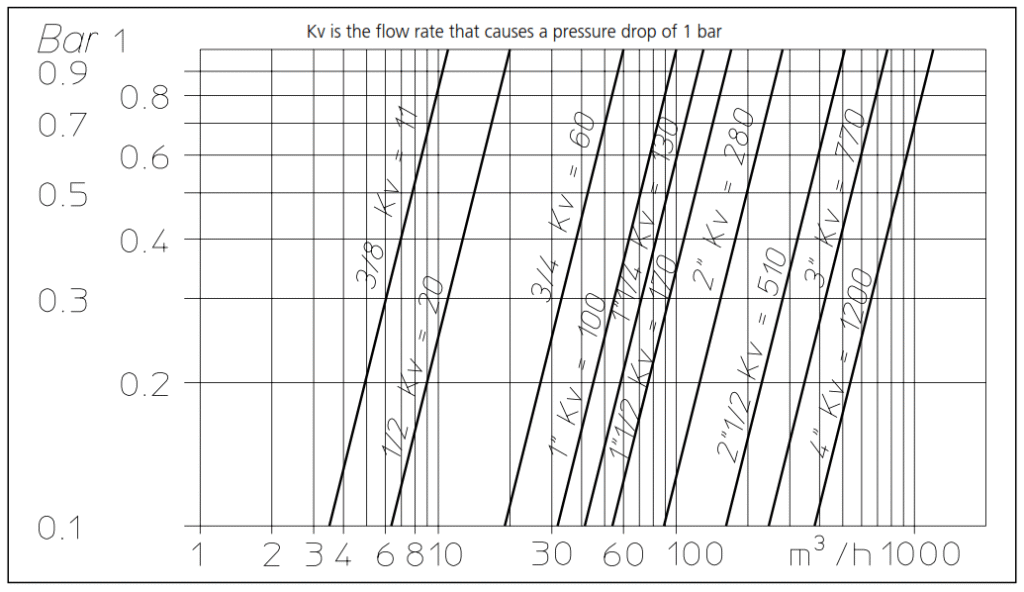

PRESSURE DROP/FLOW RATE DIAGRAM – BALL VALVE

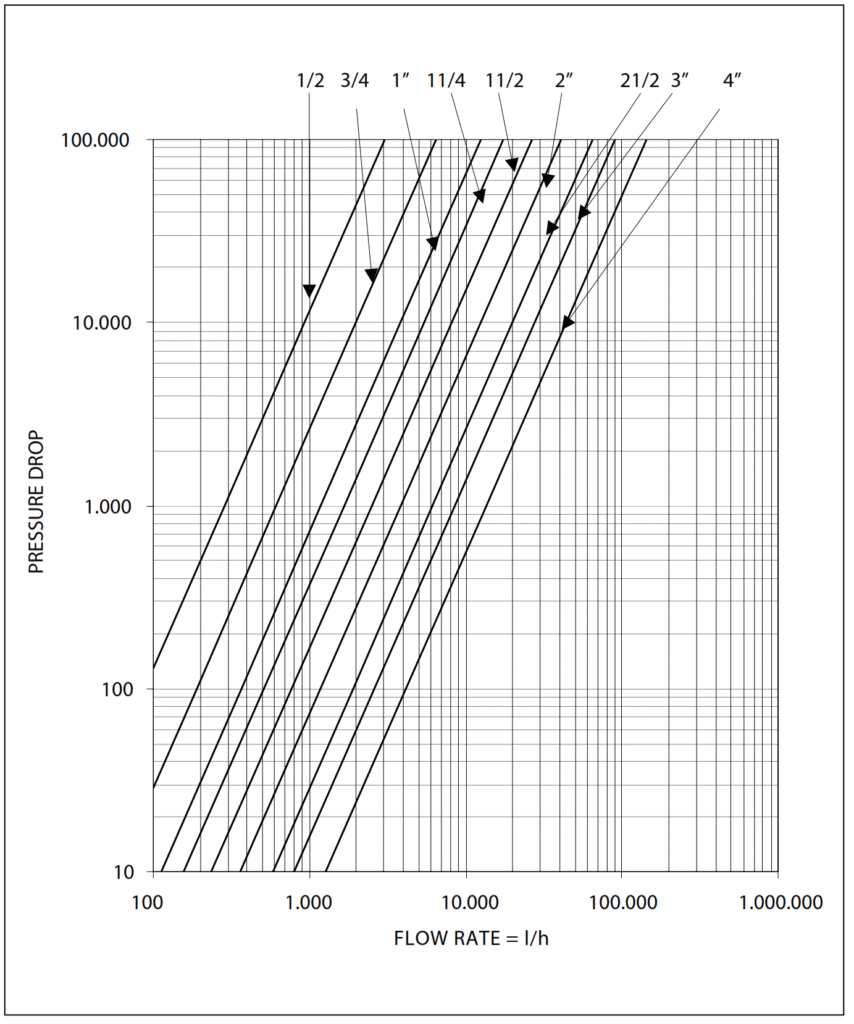

PRESSURE DROP ΔP DIAGRAM – CHOKE VALVE ( Butterfly valve)

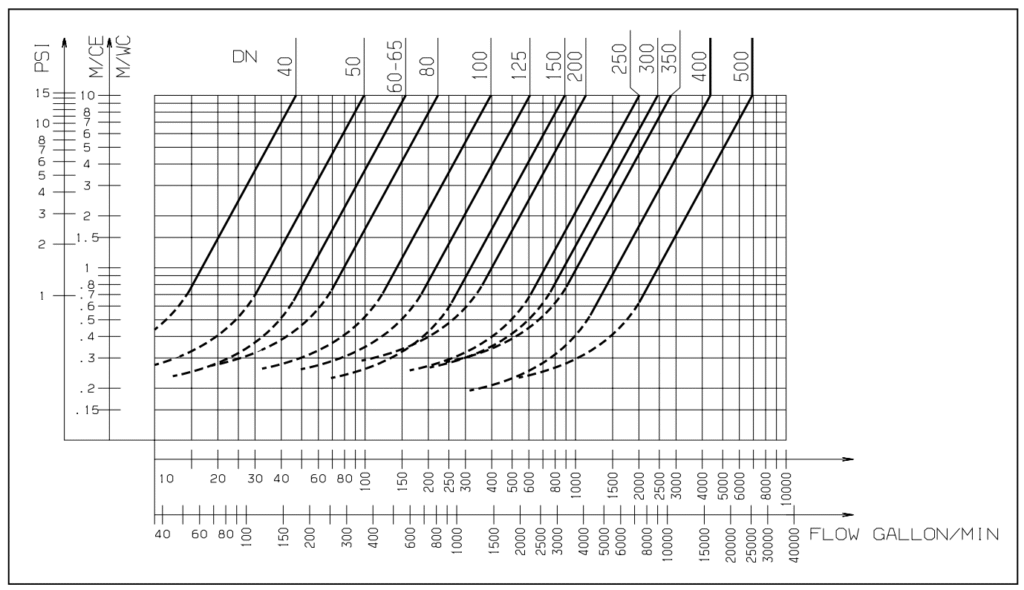

PRESSURE DROP ΔP DIAGRAM – FOOT VALVE ( Bottom valve)

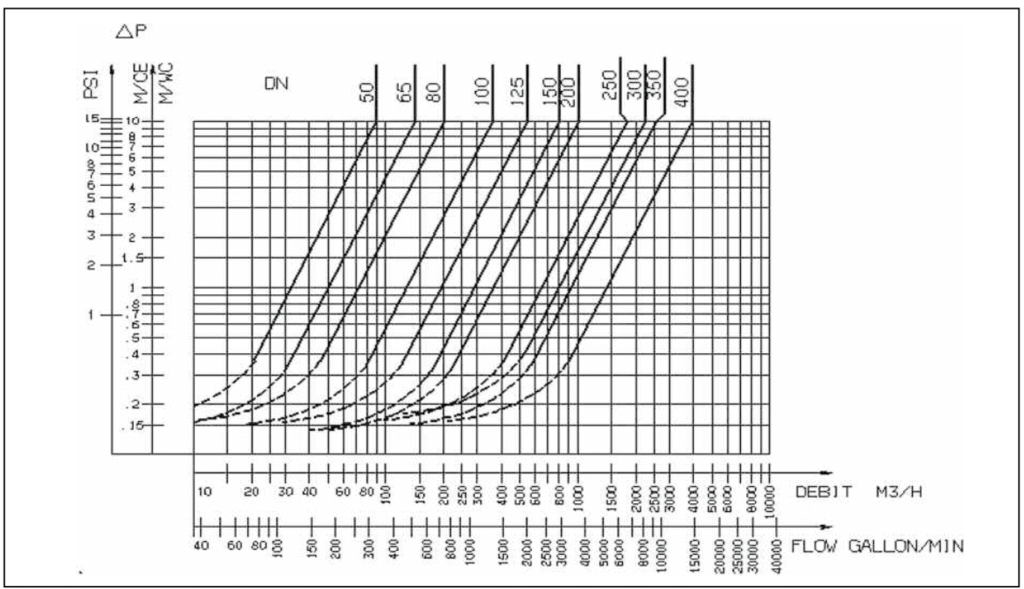

PRESSURE DROP ΔP DIAGRAM – BRASS CHECK VALVE

PRESSURE DROP ΔP DIAGRAM – FLANGED CHECK VALVE IN CAST IRON

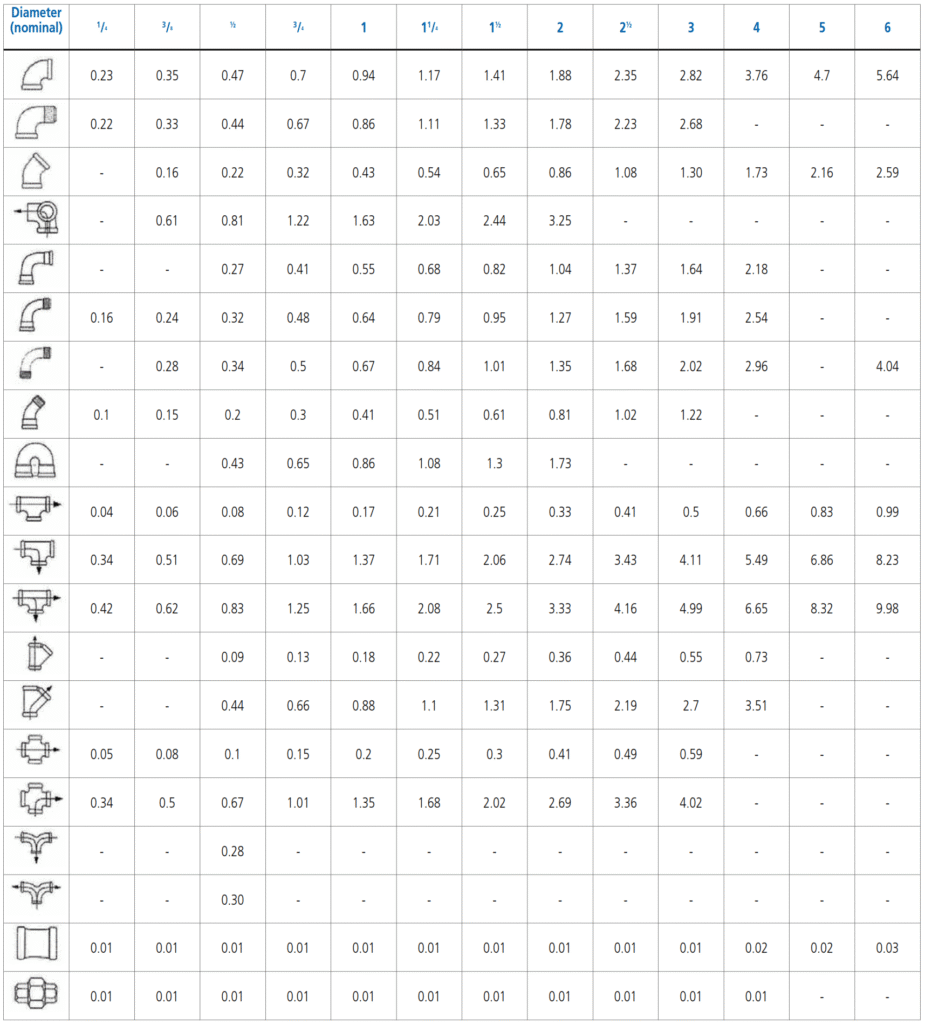

PRESSURE DROP IN EQUIVALENT LENGTH OF PIPE IN METRES OF GALVANISED STEEL PIPE
