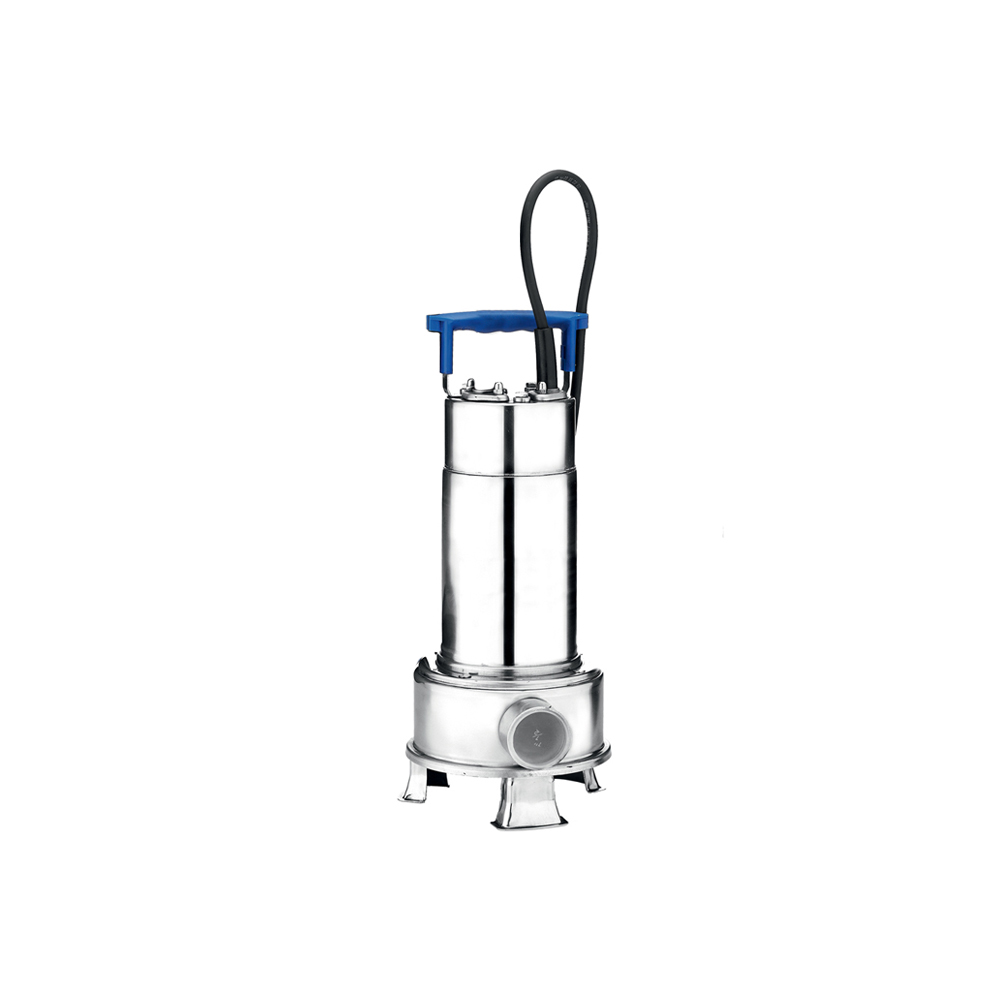

Submersible pump entirely in AISI 304 stainless steel and open vortex impeller

RIGHT/A 100

Name: RIGHT/A 100
Brand: EBARA PUMP
SKU: 1771050004A
Availability: InStock

RIGHT/A 100 Submersible pump entirely in AISI 304 stainless steel and open vortex impeller, which can be used in fixed and mobile installations. Suitable for domestic applications and large industrial wastewater lifting installations

SKU: 1771050004A

Category: RIGHT

Tags: EBARA RIGHT Series

Brands: EBARA PUMP

Description

Submersible pump entirely in AISI 304 stainless steel and open vortex impeller, which can be used in fixed and mobile installations.

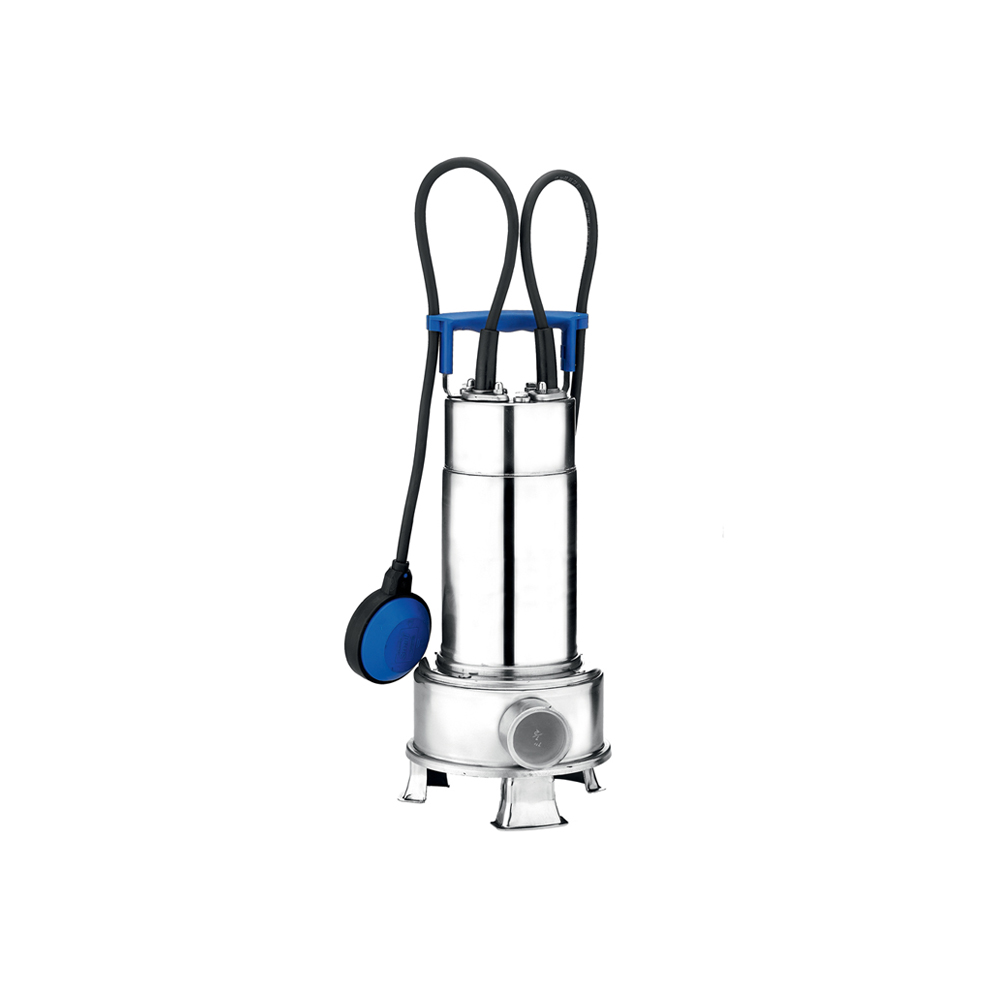

The RIGHT electric pump is also available with a float switch that allows for wide use.
For further technical information see the Databook

• Handling of soiled liquids containing solid and/or filamentary substances in suspension
• Emptying of seepage water
• Handling of dirty wastewater (sanitary)
• Emptying of cesspits and discharge to sewers

Technical data

Flow rate	up to 18 m³/h
Total head	up to 9.5 m
Max. temperature of the liquid	+50°C
Poles	2
Max. solids passage	35 mm
Insulation class	F
Protection degree	IPX8
Voltage	Single-phase 1~230V ± 10% Three-phase 3~400V ±10%
Max. immersion	7 m with 10 m cable 2 m with 5 m cable

Materials

Pump body	Stainless steel AISI 304 (EN 1.4301)
Impeller	Stainless steel AISI 304 (EN 1.4301)
Shaft	Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid)
Mechanical seal	upper part in Carbon/Ceramic/NBR (motor side) lower part in Silicon Carbide/NBR (pump side)

Additional information

Weight	11 kg
Material	Casing: AISI304, impeller: AISI 304, Shaft; AISI 304
Suction size	NO
Discharge size	1”
Power Rating	0.75
Voltage	380V
Flow Rate (lpm)	40-300
Head (Lift Height) (m)	9.5-2
Speed (rpm)	2900
Usage/Application	Irrigation,Wastewater
Country of Origin	Made in ITALY
Ingress Protection (IP) Rating	IP55
