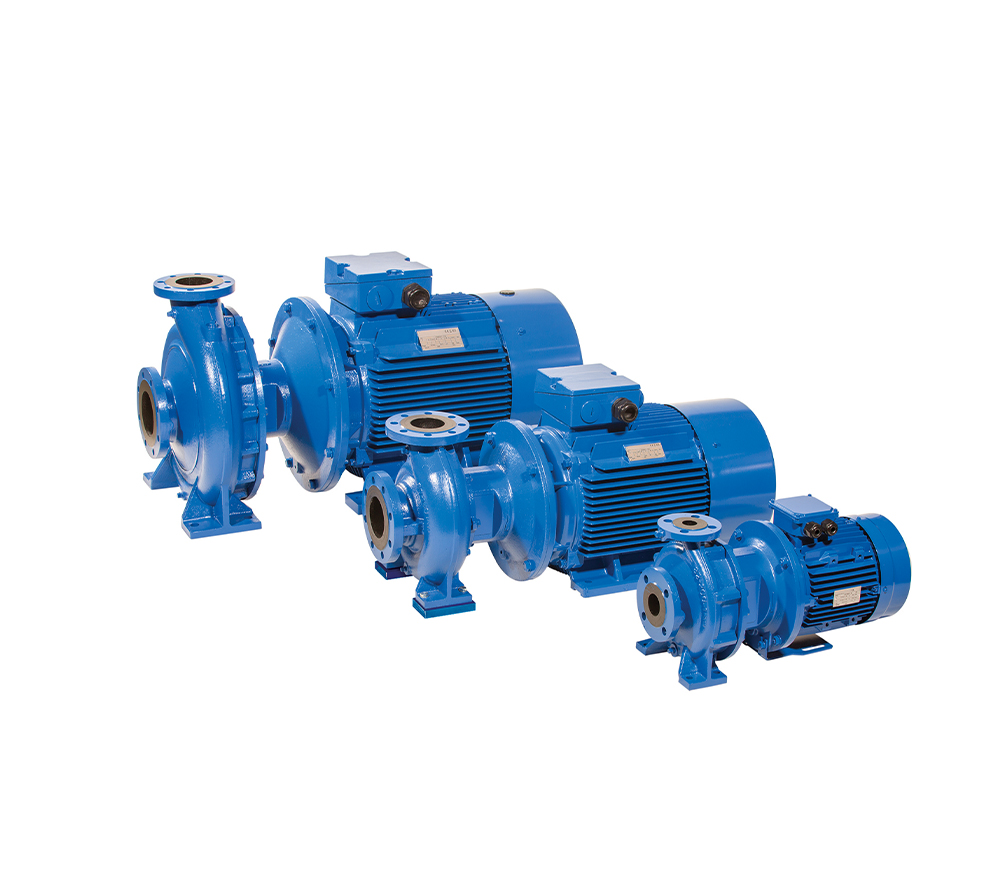

GSD Series

Description

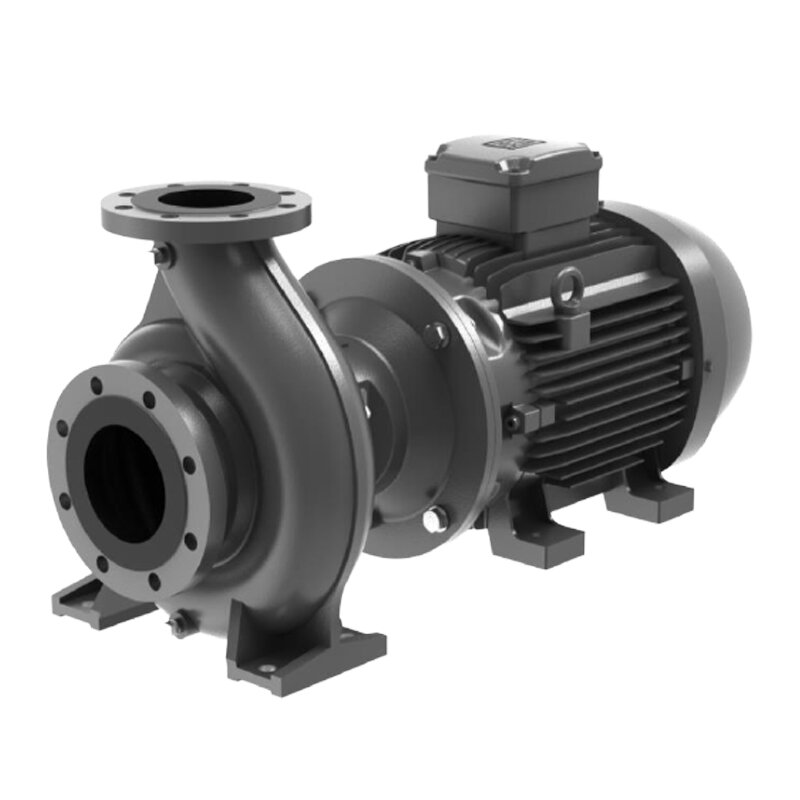

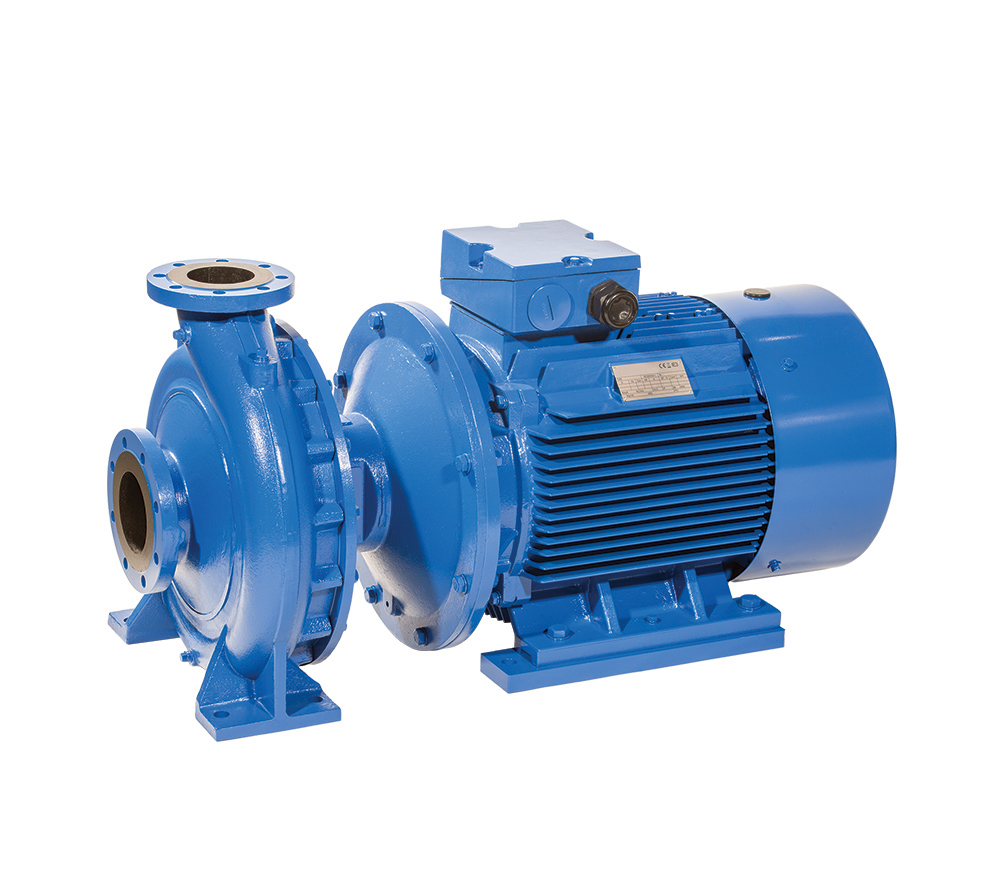

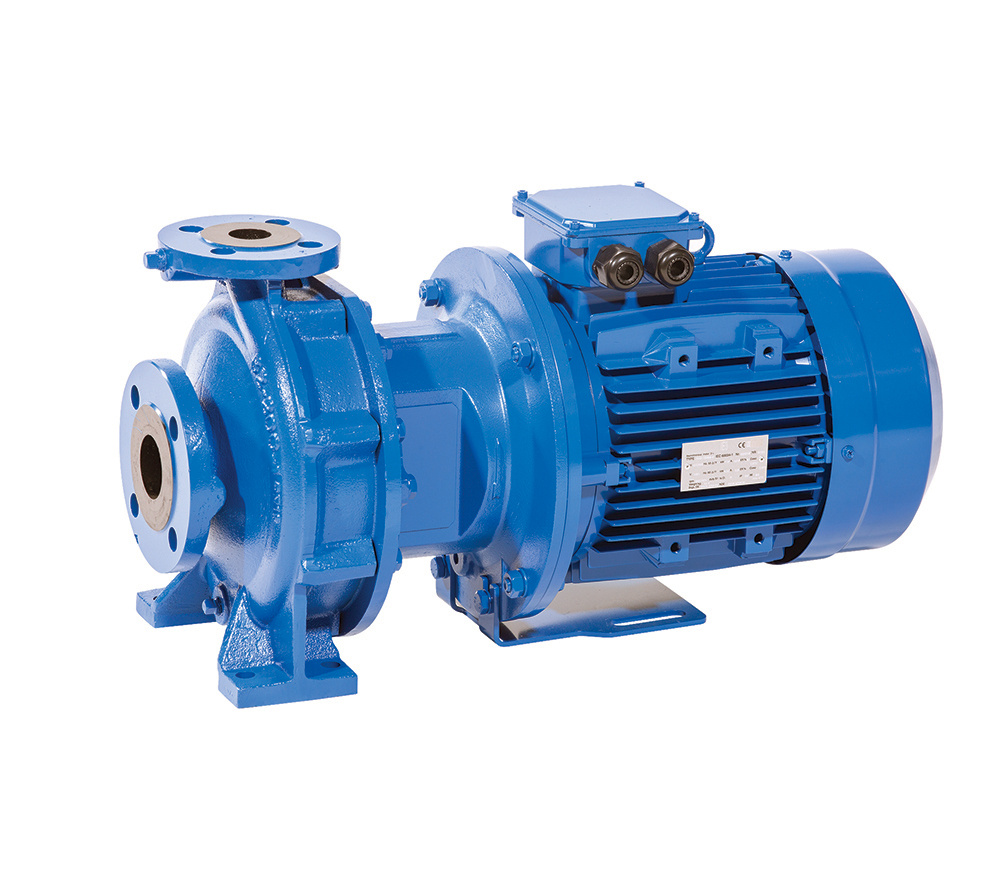

EBARA End Suction Volute Monoblock Pump

Energy-saving design: World top class pump efficiency achieved, Major improvement over our previous models by impeller designed using our proprietary
3D inverse design technology: Higher efficiency means lower energy consumption and motor output, and more compact size.
Easy installation and simple maintenance: Alignment is not required with close coupled design, Back pull-out structure enables disassembly and inspection without removal of suction and discharge piping, Shield bearings eliminate need for adding or exchanging lubricating oil. (Up to 45kW), Shaft seal flushing piping not required for the standard application, Air-bleeding not required, Simplified shaft seal and “O” ring body seal enable easy assembly.
Pump specifications: Maximum operating pressure: 16 bar, Liquid temperature range expansion: -10℃ to 120℃, Compatible with multiple flange standards.
International standards: Pump dimensions adopt EN733, Mechanical seal adopts EN12756, Protector fitted in accordance with EN294, Electric motor conforms to IEC60072-1 and IEC60034-1.

Application:

BUILDING: Air conditioning-district heating & cooling, General water supply, Brine (antifreeze liquid), Hot water circulation, High boost pressure.
WATER SUPPLY: Water supply duties for municipalities, Irrigation, Drainage clean water, Fire protection, Swimming pool.

Flow rate	up to 800 m³/h
Total head	up to 150 m
Max. working pressure	16 bar
Max. temperature of the liquid	-10°C ÷ 120°C for standard version 0°C ÷ 75°C for optional version
MEI	> 0.4
Poles	2 and 4
Insulation class	F
Protection degree	IP55
Voltage	Three-phase 3~230/400V ±10% (up to and including 4kW) Three-phase 3~400/690V ±10% (from 5.5kW and above)

Pump body	Cast iron
Impeller	Cast Iron, Nodular cast iron, Bronze
Shaft	Stainless steel 420 (EN 1.4021)
Mechanical seal	Silicon carbide/Carbon/EPDM (standard) Silicon carbide/Carbon/FPM (optional)
Motor support	Cast iron

Weight	26,6 kg
