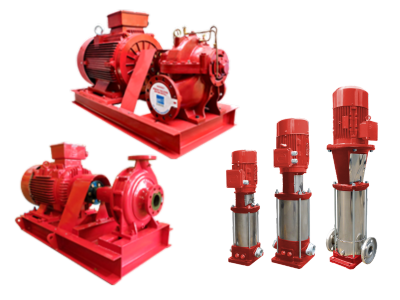

Fire Fighting Pump Model: CNPA & FSPA

Description

• Non Overload design to ensure stable performance for all applications
• Corrosion resistant materials used on the rotating parts
• Hydraulically balanced impeller extends bearing life and assures smoother operation
• Fully compliance to NFPA-20 and listed by Underwriters Laboratories (UL)

Application:

• HORIZONTAL SPLIT CASING CENTRIFUGAL PUMP Version: CNPA
• Very compact design for easy of installation and permits minimum maintenance.
• Axially split casing allows the easy removal of the top casing for inspection and service.
• Available in horizontal configuration.
• Available in clockwise or counter clockwise rotation to simplify pump room layout.
• Flow rate capacity 500 up to 1250 USGPM.
• Working pressure up to 250 psi with 250 lb. ANSI Flanges.

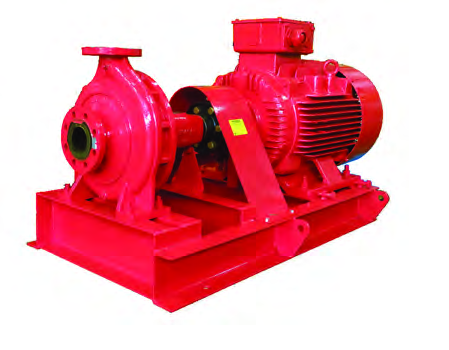

• END SUCTION VOLUTE Pump Version: FSPA
• Easy removal and maintenance, BPO (Back Pull Out) system allows all rotating elements to be removed without disconnecting suction and discharge pipe work.
• Top centreline discharge, foot support under casing for maximum resistance to misalignment and distortion from pipe loads.
• Flow rate capacity 250 up to 750 USGPM.
• Working pressure up to 250 psi with 250 lb. ANSI Flanges.

Selection chart:

CATALOGUE: FSA _ EBARA END SUCTION VOLUTE
